Products > PP Woven bag making machine > > PP Woven bag Laminating Machine

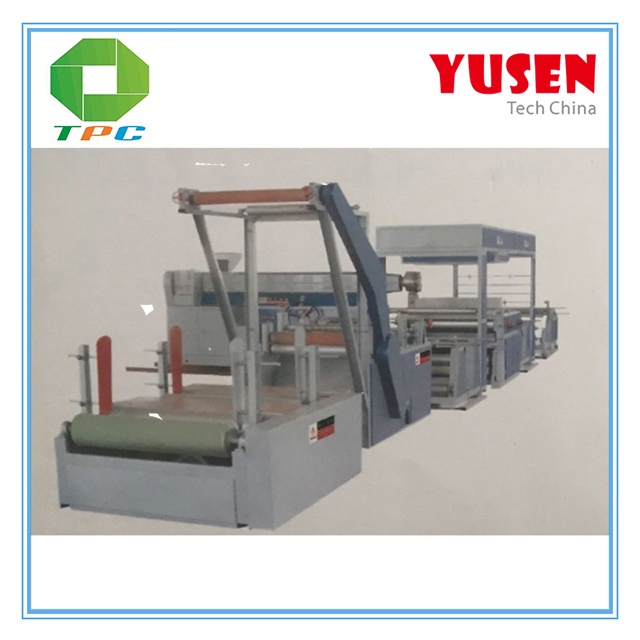

Product name : PP Woven bag Laminating Machine
Item : SJ-FMF800-90I
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
 SJ-FMF Series Plastic Laminating Machine
This machine breaks the former shortcoming of only using expensive special coating plastics for film instead, it use common polypropylene power material plus a little polyethylene. Under the molten state, it has a peculiar gluey function to daub film between braiding bag and paper or braiding bag and BOPP film or on braiding film and make all kinds of compound braiding bags through pasting and cutting by pressure.
As a result, it greatly reduces the cost and win better market for compound bags. The extruder of this unit can control the melting temperature automatically. It uses no-class speed adjuster to adjust the thickness of melting film, two-side or one-side film, double-mold head and the width of coating. The timber, which can be adjusted crossly, has auto-cutting side, blowing side and the M-folding side. If the device is cut off, the whole structure will operate in the same step. Moreover, this machine can also adjust the length of cutting bags by using no-class speed adjuster changing gears.
Main Technical Parameter

Model

SJ-FMF800-90I

Screw diameter of extruder

90mm



Engine power of extruder

70kw

Length: Diameter of screw

28:1

Power of drawing engine

4kw

Laminating and coating speed

20-100m/min

Width of molds

1000mm



Heating power

32kw

Max width laminating

800mm



Cutting length

500-1200mm

Weight

6000kg



Overall dimensions (L×W×H)

L11000mmW5500mmH2500mm
