Products > Printing Machine > > High-speed Rorogravure Machine

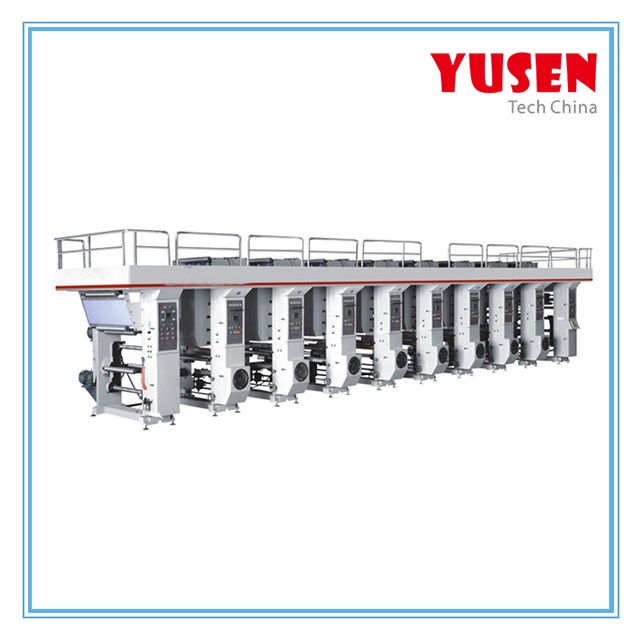

Product name : High-speed Rorogravure Machine
Item : TS-C600--1100
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
 High-speed Rorogravure Machine
1.Usage: It is suitable for BOPP, PET, CPP, PVCD and combined film and paper with the same properties. Its printing speed is 130m/min, while the mechanical speed is 150m/min.

2.Main transmission device: The main transmission device adopts electrician frequency inverter of Shenzhen Henchman to control the vector motor, transferring each group of printing cylinders. It has the performance of electric power saving.
3. Printing cylinder installing Device without Axis: The installation of printing cylinders adopts air cylinder to pull the core of axis to install the cylinders. The horizontal adjustment adopts the movement of screw. Performance: reduce time to replace the cylinders. Assure the boards to be concentric, improve the quality of product.
4. Structure of ink scraper: The ink scrapers can be adjusted up and down as well as its positions. The pressure of scraper adopts dual air pressure style .The horizontal movement adopts both the rotations of the motor and movement of cam. Performance: lengthen the service of the printing cylinders.
5. Impressive lift Structure: The impression adopts dual air cylinder to impress through lifting to position the solenoid, which is a protector for the air leakage of the cylinder when the machine stops working. Performance: average pressure 6. Chromatic Mechanical Handles: They adopt computer to control, synchronic motor to transfer the ball thread bar to adjust the chromatography through reducing the speed to register color automatically. Performance: Rotate with lubrication and high precision in chromatography.
7. Material-Collecting and Feeding Device: The material collecting and feeding stand adopts dual scaffold. It can change material roller and collect materials automatically. The tension of material-feeding and traction of material-collecting and feeding adopt frequency inverter vector to control the linear speed .The tension of material-collecting adopts being controlled by torque motor. Performance: accelerate the stabilization of chromatography, position the cylinder in horizontal direction ,save materials 、ink、impregnate and energy for large quantities of printing products. And while the speed of material collecting is 120m/min, the most waste of material collecting is about 20 meters, and it can save about 10% ink, impregnate and energy resources, and lower the cost of the product largely.
8. Drying and cooling device: The oven adopts centrifugal blower to blow and make suction. The electric quartz tubes are installed averagely in each group of ovens at their blowing mouth to heat .The temperature is controlled by intelligent thermo-controller. At the mouth is installed a centrifugal blower to cool each group of ovens to cool .While the returning roller adopts water-cooling device to control to assure the cooling of film. Performances save electric power.

Model

TS-C800

TS-C1100

Web width

800mm

1100mm

Printing speed

max130m/min

max130m/min

Print cyl. dia.

Ф100-350mm

Ф100-350mm

Web diameter

Ф600mm

Ф600mm

Print cyl. Longitudinal adjustable

30mm

30mm

Registering accuracy

±0.1mm

±0.1mm

Total power

115kw

130kw

Weight

12000kg

13000kg

Overall dimensions(L×W×H)(mm)

14500×2800×3060

14500×3100×3060
